Alle Lifting masts

DV

Hydronika offers different mast types, custom designed for all known forklift applications on machines ranging from electric or combustion engine powered forklifts to reach trucks, side loaders or container trucks. But also electric lift masts for AGVs.

Specificaties

Capacity
1,300 - 42,000 kg
Lifting height
up to +/- 7000 mm
Free tax
Number of mast sections
2
Number of lifting cylinders
3 of 4
Cylinders outside
Cylinders rear
Expert since 1978 One quickly available contact person In-house service team On-site maintenance

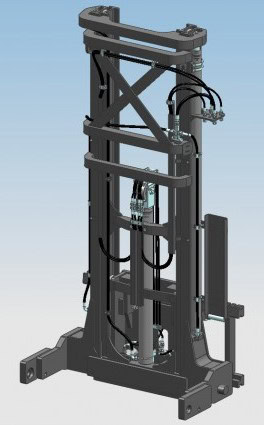

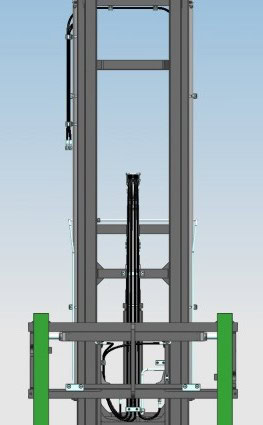

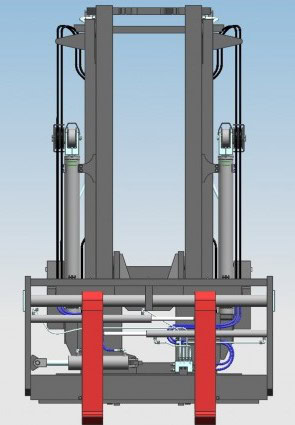

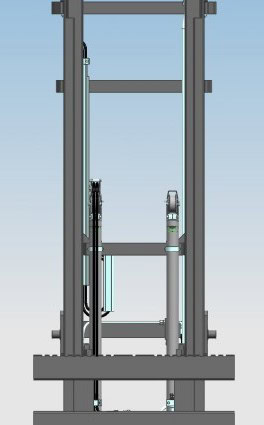

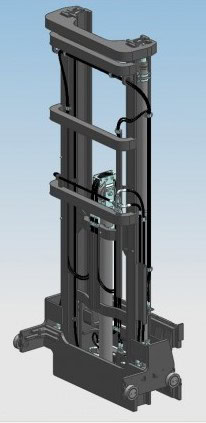

Some examples:

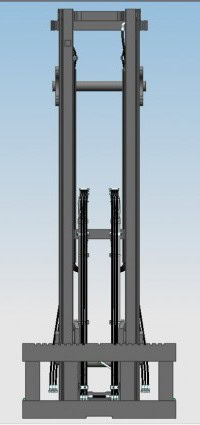

Afbeelding omschrijving:

2,500 kg capacity, 4 cylinders

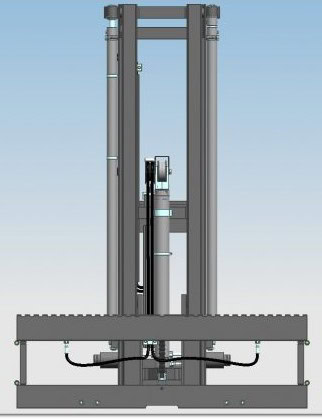

Afbeelding omschrijving:

3,000 kg capacity, 3 cylinders

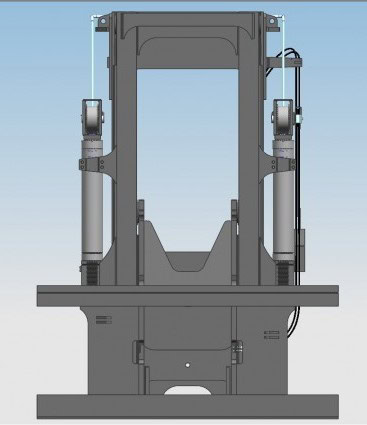

Afbeelding omschrijving:

3,000 kg capacity, 3 cylinders

Afbeelding omschrijving:

3,000 kg capacity, 4 cylinders

Afbeelding omschrijving:

3,000 kg capacity, 4 cylinders

Afbeelding omschrijving:

5,000 kg capacity, 4 cylinders

Afbeelding omschrijving:

5,000 kg capacity, 3 cylinders

Afbeelding omschrijving:

5,000 kg capacity, 3 cylinders

Afbeelding omschrijving:

5,000 kg capacity, 4 cylinders

Afbeelding omschrijving:

8,000 kg capacity, 4 cylinders

Afbeelding omschrijving:

8,000 kg capacity, 4 cylinders

Afbeelding omschrijving:

12,000 kg capacity, 4 cylinders

Afbeelding omschrijving:

32,000 kg capacity, 4 cylinders

Afbeelding omschrijving:

42,000 kg capacity, 4 cylinders

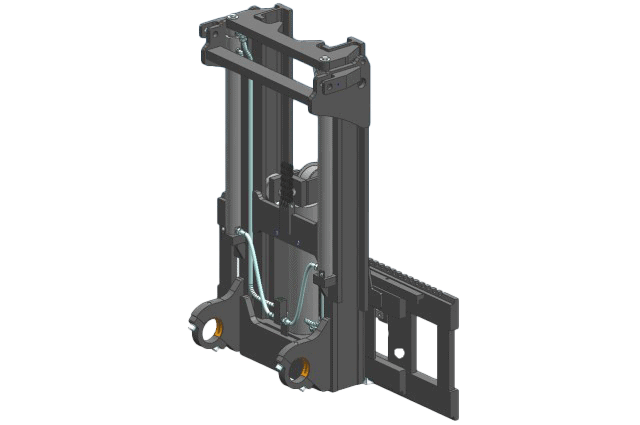

Model “DV”

The model DV is a 2-part mast with free lift, also called duplex. This mast consists of two mast sections that slide into each other but that also has a free lift of the fork carriage. The mast offers the possibility of lifting the forks, for part of the lifting height, without increasing the overall height of the mast. This type of mast is especially useful in situations where the forklift has to drive through low doorways or in areas with low ceilings.

Some features:

  • Free charge: The forks can be partially raised without raising the mast itself, which is useful for working in confined spaces.
  • Free lifting cylinder(s): At least 1 additional cylinder is required for free lift. By default, this is a centrally positioned cylinder but in many cases a design can also be made with 2 smaller cylinders placed against as far apart as possible for better visibility through the centre of the mast. For larger capacities, these cylinders can even be placed outside the mast sections.
  • Suitable for low ceilings: Because the mast does not increase in height during the free lift section, this type of mast is ideal for use in warehouses with low ceilings.

2-part mast with free lift
